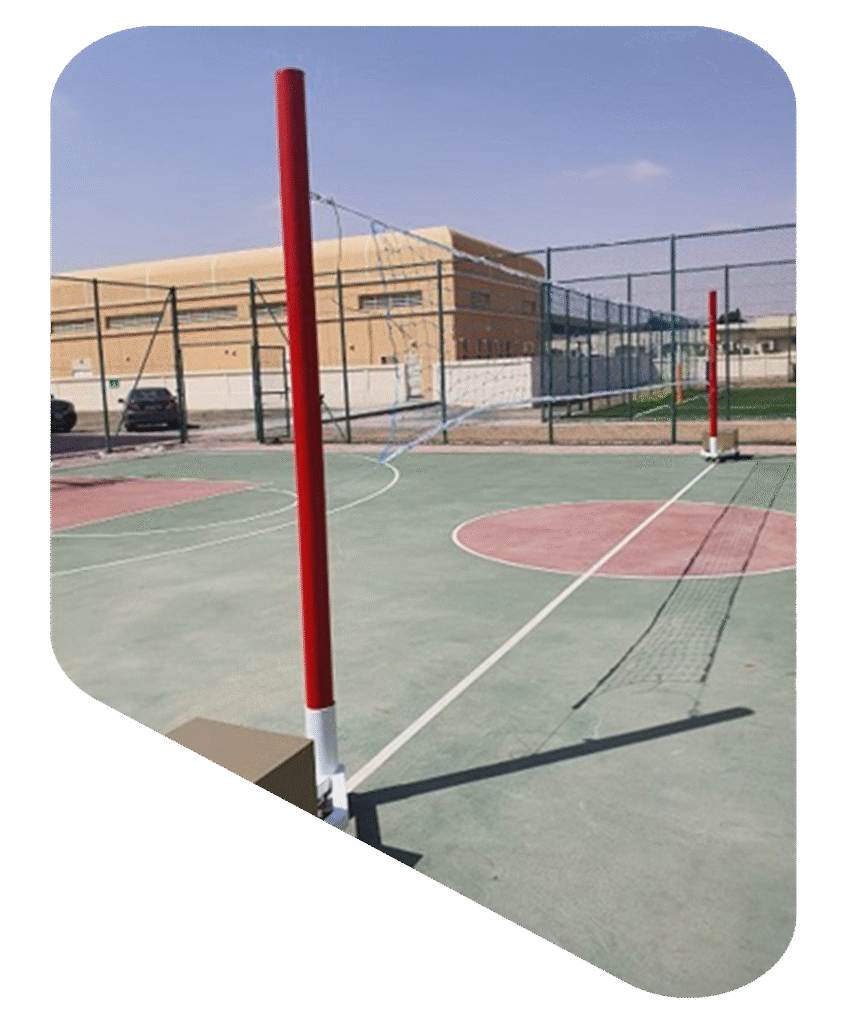

Movable volleyball post system designed for stability
and easy repositioning in sports facilities. The system
includes a winching mechanism and stainless steel
pulley for smooth and accurate net tensioning. A
weighted base structure with lockable castor wheels
ensures secure positioning during play while allowing
convenient mobility when required.
Dimensions
Post height above surface: 2,450 mm
Net span: 10,000 mm
Total system length: 12,620 mm
Material
Main posts are fabricated from 120 × 100 × 2.5 mm
aluminum profiles with a 40 × 80 × 3 mm aluminum
base frame and structural aluminum supports. The
system includes a stainless steel pulley, winching
mechanism, lockable castor wheels, and concrete
counterweights (70 kg total) for stability.
Technical Data
Quick Specifications
Post Height Above FFL
2.450 mm
Net Height
2,430 mm
Net Span
10,000 mm
Post Profile
120 x 100 x 2.5 mm
Aluminium
Base Frame
40 x 80 x 3 mm
Aluminium RHS
Pulley
50mm
Diameter Stainless Steel
Net Tensioning
Winch Mechanism
Mobility System
200Kg
Rates Lockable Castor
Wheels
Counterweight
2 Solid Conctere Blocks
Each
35Kg
Net Material
High-density polyethylene (HDPE) or
Polypropylene (PP)
